易福门 IFM 带空心轴的绝对式多圈编码器 RMA型

易福门 IFM 带空心轴的绝对式多圈编码器 RMA型

产品品牌：易福门 IFM

原始型号：RMA300价格：询价

好友E-mail:(以逗号分开不同的邮箱地址)
您的推荐留言:
电子元器件 > 控制器 > 编码器
易福门 IFM 带空心轴的绝对式多圈编码器 RMA型
加入收藏
在线咨询易福门 IFM 带空心轴的绝对式多圈编码器 RMA型
产品编号：BT2307010005
厂家型号：RMA300
产品品牌：易福门 IFM
价格：¥询价 个
规格型号：
数量：件
加入询价篮
产品描述 技术参数 包装参数 保修条款 产品资料



RMA300绝对式Ø 36 / L = 54.2 mm单面开通的空心轴12 mm65536 步距; 32768 圈数; 31 Bit
{"id":"RMA300","revisionId":["00"],"pimId":"RMA300-00","site":null,"title":"RMA300","industryName":null,"summary":"","body":null,"category":null,"url":"/cn/zh/product/RMA300","imageUrl":"/responsive/original/content/gallery/product-images/RM/RMA300/P_F_E_W_400_0115_RMA300_01.jpg?v=1078414681","imageThumbnailUrl":"/responsive/thumbnail/content/gallery/product-images/RM/RMA300/P_F_E_W_400_0115_RMA300_01.jpg?v=1078414681","responsiveImageUrls":{"SMALL":"/responsive/small/content/gallery/product-images/RM/RMA300/P_F_E_W_400_0115_RMA300_01.jpg?v=1078414681","MEDIUM":"/responsive/medium/content/gallery/product-images/RM/RMA300/P_F_E_W_400_0115_RMA300_01.jpg?v=1078414681","LARGE":"/responsive/large/content/gallery/product-images/RM/RMA300/P_F_E_W_400_0115_RMA300_01.jpg?v=1078414681","ORIGINAL":"/responsive/original/content/gallery/product-images/RM/RMA300/P_F_E_W_400_0115_RMA300_01.jpg?v=1078414681","THUMBNAIL":"/responsive/thumbnail/content/gallery/product-images/RM/RMA300/P_F_E_W_400_0115_RMA300_01.jpg?v=1078414681","XLARGE":"/responsive/xlarge/content/gallery/product-images/RM/RMA300/P_F_E_W_400_0115_RMA300_01.jpg?v=1078414681"},"_type":"product","docType":null,"bulletPoints":["即使在断电时也能提供绝对位置","测量轴承运行时间，实现高效维护计划","可自由编程总分辨率高达31位","可编程数字开关输入/输出","通过磁力感应原理获得高耐冲击和振动能力"],"productHeadline":"带空心轴的绝对式多圈编码器","price":null,"currency":null,"formattedPrice":"CNY.00","deliveryTime":"","discountGroupSAP":"","discountGroupBAAN":"","productType":"MULTITURN ENCODER STANDARD LINE","imagePath":null,"productGroupFacet":"[null]","accessoryHeadline":"","archiveProduct":false,"ersatzartikel":"","notApproved":false,"customerSpecific":false,"shortDescription":"多圈空心轴编码器; 轴直径 12 mm; 分辨率 65536 步距; 32768 圈数; 31 Bit; IO-Link; M12 接插件","softwareType":"","form":null,"date":null,"fileVersion":null,"fileSize":null,"producer":null,"secure":false,"compatible":true,"additionalAccessoryViewAttribute":null,"additionalAccessoryViewAttributeValue":null,"downloadPackageVersion":null,"viewAttributes":[{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":null,"label":"功能原理","uom":"","listAttribute":false,"valueWithUom":"绝对式 "},{"id":"at_dimensions","value":"Ø 36 / L = 54.2","listValue":null,"label":"尺寸","uom":"mm","listAttribute":false,"valueWithUom":"Ø 36 / L = 54.2 mm"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":null,"label":"轴监控器","uom":"","listAttribute":false,"valueWithUom":"单面开通的空心轴 "},{"id":"at_welle-durchmesser","value":"12","listValue":null,"label":"轴直径","uom":"mm","listAttribute":false,"valueWithUom":"12 mm"},{"id":"at_aufloesung","value":"65536 步距; 32768 圈数; 31 Bit","listValue":null,"label":"分辨率","uom":"","listAttribute":false,"valueWithUom":"65536 步距; 32768 圈数; 31 Bit "},{"id":"at_befestigungsflansch","value":"夹紧法兰","listValue":null,"label":"固定法兰","uom":"","listAttribute":false,"valueWithUom":"夹紧法兰 "},{"id":"at_anschlussart-mit-details","value":"M12 接插件","listValue":null,"label":"接口","uom":"","listAttribute":false,"valueWithUom":"M12 接插件 "},{"id":"at_betriebsspannung-dc-bereich","value":"18...30","listValue":null,"label":"工作电压DC","uom":"V","listAttribute":false,"valueWithUom":"18...30 V"},{"id":"at_schutzart-wert","value":"[IP 65]","listValue":["IP 65"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 65"},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":null,"label":"环境温度","uom":"°C","listAttribute":false,"valueWithUom":"-40...85 °C"},{"id":"at_pruefzeichen-suchfacette","value":"[CE, EAC]","listValue":["CE","EAC"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE, EAC"}],"viewAttributesGrouped":[{"id":"at_aufloesung","value":"65536 步距; 32768 圈数; 31 Bit","listValue":["65536 步距; 32768 圈数; 31 Bit "],"label":"分辨率","uom":"","listAttribute":true,"valueWithUom":"65536 步距; 32768 圈数; 31 Bit "},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":["-40...85 °C"],"label":"环境温度","uom":"°C","listAttribute":true,"valueWithUom":"-40...85 °C"},{"id":"at_anschlussart-mit-details","value":"M12 接插件","listValue":["M12 接插件 "],"label":"接口","uom":"","listAttribute":true,"valueWithUom":"M12 接插件 "},{"id":"at_dimensions","value":"Ø 36 / L = 54.2","listValue":["Ø 36 / L = 54.2 mm"],"label":"尺寸","uom":"mm","listAttribute":true,"valueWithUom":"Ø 36 / L = 54.2 mm"},{"id":"at_befestigungsflansch","value":"夹紧法兰","listValue":["夹紧法兰 "],"label":"固定法兰","uom":"","listAttribute":true,"valueWithUom":"夹紧法兰 "},{"id":"at_betriebsspannung-dc-bereich","value":"18...30","listValue":["18...30 V"],"label":"工作电压DC","uom":"V","listAttribute":true,"valueWithUom":"18...30 V"},{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":["绝对式 "],"label":"功能原理","uom":"","listAttribute":true,"valueWithUom":"绝对式 "},{"id":"at_schutzart-wert","value":"[IP 65]","listValue":["IP 65"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 65"},{"id":"at_welle-durchmesser","value":"12","listValue":["12 mm"],"label":"轴直径","uom":"mm","listAttribute":true,"valueWithUom":"12 mm"},{"id":"at_pruefzeichen-suchfacette","value":"[CE, EAC]","listValue":["CE, EAC"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE, EAC"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":["单面开通的空心轴 "],"label":"轴监控器","uom":"","listAttribute":true,"valueWithUom":"单面开通的空心轴 "}],"processAttributes":[],"evaluationAttributes":[],"variantIds":[],"validImageNames":["P_F_E_W_400_0115_RMA300_01.JPG","P_F_E_W_400_0115_RMA300_02.JPG","P_F_E_W_400_0115_RMA300_03.JPG"],"variants":[],"softwareProduct":false,"productResult":true,"productCategoryDocumentResult":false,"productCategoryResult":false,"hippoDocumentResult":false}
RMA310绝对式Ø 42 / L = 89.5 mm单面开通的空心轴12 mm65536 步距; 32768 圈数; 31 Bit
{"id":"RMA310","revisionId":["00"],"pimId":"RMA310-00","site":null,"title":"RMA310","industryName":null,"summary":"","body":null,"category":null,"url":"/cn/zh/product/RMA310","imageUrl":"/responsive/original/content/gallery/product-images/RM/RMA310/P_F_E_W_400_0114_RMA310_01.jpg?v=1078456712","imageThumbnailUrl":"/responsive/thumbnail/content/gallery/product-images/RM/RMA310/P_F_E_W_400_0114_RMA310_01.jpg?v=1078456712","responsiveImageUrls":{"SMALL":"/responsive/small/content/gallery/product-images/RM/RMA310/P_F_E_W_400_0114_RMA310_01.jpg?v=1078456712","MEDIUM":"/responsive/medium/content/gallery/product-images/RM/RMA310/P_F_E_W_400_0114_RMA310_01.jpg?v=1078456712","LARGE":"/responsive/large/content/gallery/product-images/RM/RMA310/P_F_E_W_400_0114_RMA310_01.jpg?v=1078456712","ORIGINAL":"/responsive/original/content/gallery/product-images/RM/RMA310/P_F_E_W_400_0114_RMA310_01.jpg?v=1078456712","THUMBNAIL":"/responsive/thumbnail/content/gallery/product-images/RM/RMA310/P_F_E_W_400_0114_RMA310_01.jpg?v=1078456712","XLARGE":"/responsive/xlarge/content/gallery/product-images/RM/RMA310/P_F_E_W_400_0114_RMA310_01.jpg?v=1078456712"},"_type":"product","docType":null,"bulletPoints":["即使在断电时也能提供绝对位置","测量轴承运行时间，实现高效维护计划","可自由编程总分辨率高达31位","可编程数字开关输入/输出","通过磁力感应原理获得高耐冲击和振动能力"],"productHeadline":"带空心轴的绝对式多圈编码器","price":null,"currency":null,"formattedPrice":"CNY.00","deliveryTime":"","discountGroupSAP":"","discountGroupBAAN":"","productType":"MULTITURN ENCODER WET LINE","imagePath":null,"productGroupFacet":"[null]","accessoryHeadline":"","archiveProduct":false,"ersatzartikel":"","notApproved":false,"customerSpecific":false,"shortDescription":"多圈空心轴编码器; 轴直径 12 mm; 分辨率 65536 步距; 32768 圈数; 31 Bit; IO-Link; M12 接插件","softwareType":"","form":null,"date":null,"fileVersion":null,"fileSize":null,"producer":null,"secure":false,"compatible":true,"additionalAccessoryViewAttribute":null,"additionalAccessoryViewAttributeValue":null,"downloadPackageVersion":null,"viewAttributes":[{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":null,"label":"功能原理","uom":"","listAttribute":false,"valueWithUom":"绝对式 "},{"id":"at_dimensions","value":"Ø 42 / L = 89.5","listValue":null,"label":"尺寸","uom":"mm","listAttribute":false,"valueWithUom":"Ø 42 / L = 89.5 mm"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":null,"label":"轴监控器","uom":"","listAttribute":false,"valueWithUom":"单面开通的空心轴 "},{"id":"at_welle-durchmesser","value":"12","listValue":null,"label":"轴直径","uom":"mm","listAttribute":false,"valueWithUom":"12 mm"},{"id":"at_aufloesung","value":"65536 步距; 32768 圈数; 31 Bit","listValue":null,"label":"分辨率","uom":"","listAttribute":false,"valueWithUom":"65536 步距; 32768 圈数; 31 Bit "},{"id":"at_anschlussart-mit-details","value":"M12 接插件","listValue":null,"label":"接口","uom":"","listAttribute":false,"valueWithUom":"M12 接插件 "},{"id":"at_betriebsspannung-dc-bereich","value":"18...30","listValue":null,"label":"工作电压DC","uom":"V","listAttribute":false,"valueWithUom":"18...30 V"},{"id":"at_schutzart-wert","value":"[IP 68, IP 69K]","listValue":["IP 68","IP 69K"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 68, IP 69K"},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":null,"label":"环境温度","uom":"°C","listAttribute":false,"valueWithUom":"-40...85 °C"},{"id":"at_pruefzeichen-suchfacette","value":"[CE, EAC]","listValue":["CE","EAC"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE, EAC"}],"viewAttributesGrouped":[{"id":"at_aufloesung","value":"65536 步距; 32768 圈数; 31 Bit","listValue":["65536 步距; 32768 圈数; 31 Bit "],"label":"分辨率","uom":"","listAttribute":true,"valueWithUom":"65536 步距; 32768 圈数; 31 Bit "},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":["-40...85 °C"],"label":"环境温度","uom":"°C","listAttribute":true,"valueWithUom":"-40...85 °C"},{"id":"at_anschlussart-mit-details","value":"M12 接插件","listValue":["M12 接插件 "],"label":"接口","uom":"","listAttribute":true,"valueWithUom":"M12 接插件 "},{"id":"at_dimensions","value":"Ø 42 / L = 89.5","listValue":["Ø 42 / L = 89.5 mm"],"label":"尺寸","uom":"mm","listAttribute":true,"valueWithUom":"Ø 42 / L = 89.5 mm"},{"id":"at_betriebsspannung-dc-bereich","value":"18...30","listValue":["18...30 V"],"label":"工作电压DC","uom":"V","listAttribute":true,"valueWithUom":"18...30 V"},{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":["绝对式 "],"label":"功能原理","uom":"","listAttribute":true,"valueWithUom":"绝对式 "},{"id":"at_schutzart-wert","value":"[IP 68, IP 69K]","listValue":["IP 68, IP 69K"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 68, IP 69K"},{"id":"at_welle-durchmesser","value":"12","listValue":["12 mm"],"label":"轴直径","uom":"mm","listAttribute":true,"valueWithUom":"12 mm"},{"id":"at_pruefzeichen-suchfacette","value":"[CE, EAC]","listValue":["CE, EAC"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE, EAC"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":["单面开通的空心轴 "],"label":"轴监控器","uom":"","listAttribute":true,"valueWithUom":"单面开通的空心轴 "}],"processAttributes":[],"evaluationAttributes":[],"variantIds":[],"validImageNames":["P_F_E_W_400_0114_RMA310_01.JPG","P_F_E_W_400_0114_RMA310_02.JPG","P_F_E_W_400_0114_RMA310_03.JPG"],"variants":[],"softwareProduct":false,"productResult":true,"productCategoryDocumentResult":false,"productCategoryResult":false,"hippoDocumentResult":false}

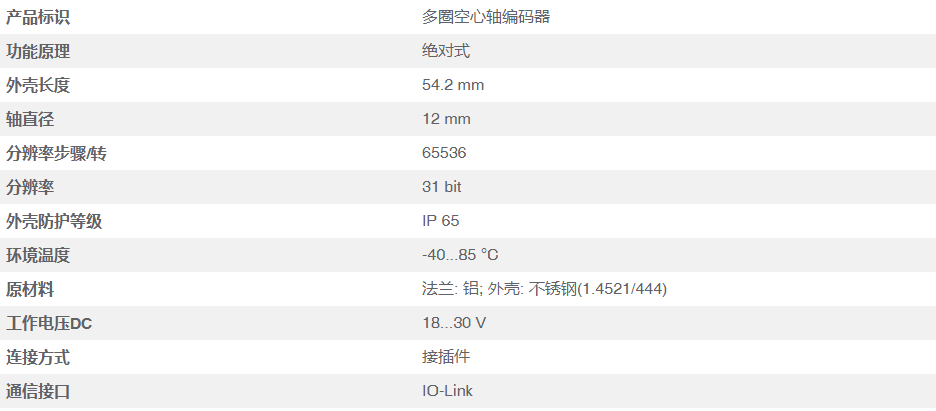

产品特征
分辨率65536 步距; 32768 圈数; 31 Bit
通信接口IO-Link
轴监控器单面开通的空心轴
轴直径 [mm]12
应用
功能原理绝对式
旋转类型多圈
电气数据
工作电压 [V]18...30 DC; (根据PELV标准)
额定绝缘电压 [V]30
电流损耗 [mA]< 75
防护等级III
反相保护有
开机延迟时间最大值 [ms]1000
旋转电气最大值 [U/min]12000
输出
短路保护有
测量/设定范围
分辨率65536 步距; 32768 圈数; 31 Bit
精度/偏差
精确度 [°]0.1
软件/编程
参数设定预设; 零点; 转向; 速度
接口
通信接口IO-Link
传递类型COM3 (230,4 kBaud)
IO-Link revision1.1
SDCI标准IEC 61131-9 CDV
外形Identification and Diagnosis; Switching Signal Channel; Measurement Data Channel (high resolution)
SIO模式否
必需的mater port typeA
处理周期最小值 [ms]2.3
IO-Link过程数据（周期性）功能位长过程值96设备状态4二进制开关信息5
IO-Link功能（非周期性）应用特定标签; 运行小时数计数器; 内部温度; 开关循环数计数器
支持的DeviceID运行方式DeviceID默认1064
注释更多信息请参见“下载”中的IODD PDF文件
工作条件
环境温度 [°C]-40...85
存储温度 [°C]-40...85
允许最大的相对空气湿度 [%]98; (不允许冷凝)
外壳防护等级IP 65; (在外壳: IP 67; 在轴: IP 64)
认证/测试
EMC电磁兼容DIN EN 61000-4-2 ESD4 kV CDDIN EN 61000-4-3 HF 辐射的10 V/mDIN EN 61000-4-4 Burst2 kVDIN EN 61000-4-6 HF 射频场感应的传导抗扰度10 V
抗振强度DIN EN 60068-2-610 g / 10...1000 Hz 半正弦
抗冲击DIN EN 60068-2-27100 g 6 ms
持续抗冲击性DIN EN 60068-2-2910 g / 16 ms 半正弦
抗震30 g (10...1000 Hz)
MTTF [年]283
机械技术数据
重量 [g]244.9
尺寸 [mm]Ø 36 / L = 54.2
原材料法兰: 铝; 外壳: 不锈钢(1.4521/444)
启动扭矩最大值 [Nm]1
温度扭矩参考 [°C]20
轴监控器单面开通的空心轴
轴直径 [mm]12
轴材料不锈钢
轴向轴负载最大值 (轴末端) [N]40
径向轴负载最大值 (轴末端) [N]110
轴的安装深度 [mm]18
最大的轴向轴 [mm]0,5
固定法兰夹紧法兰
电气连接 - 插头

接插件: 1 x M12; 成型体: 不锈钢(1.4401/316)


-
-
