易福门 IFM 带空心轴的绝对式多圈编码器 RM型

易福门 IFM 带空心轴的绝对式多圈编码器 RM型

产品品牌：易福门 IFM

原始型号：RM8007价格：询价

好友E-mail:(以逗号分开不同的邮箱地址)
您的推荐留言:
电子元器件 > 控制器 > 编码器
易福门 IFM 带空心轴的绝对式多圈编码器 RM型
加入收藏
在线咨询易福门 IFM 带空心轴的绝对式多圈编码器 RM型
产品编号：BT2307010004
厂家型号：RM8007
产品品牌：易福门 IFM
价格：¥询价 个
规格型号：
数量：件
加入询价篮
产品描述 技术参数 包装参数 保修条款 产品资料



RM3008绝对式Ø 58.5 / L = 99 mm单面开通的空心轴12 mm8192 步距; 4096 圈数; 25 Bit
{"id":"RM3008","revisionId":["00"],"pimId":"RM3008-00","site":null,"title":"RM3008","industryName":null,"summary":"","body":null,"category":null,"url":"/cn/zh/product/RM3008","imageUrl":"/responsive/original/content/gallery/product-images/RM/RM3008/P_F_E_W_400_0049_RM3008_01.jpg?v=528557718","imageThumbnailUrl":"/responsive/thumbnail/content/gallery/product-images/RM/RM3008/P_F_E_W_400_0049_RM3008_01.jpg?v=528557718","responsiveImageUrls":{"SMALL":"/responsive/small/content/gallery/product-images/RM/RM3008/P_F_E_W_400_0049_RM3008_01.jpg?v=528557718","MEDIUM":"/responsive/medium/content/gallery/product-images/RM/RM3008/P_F_E_W_400_0049_RM3008_01.jpg?v=528557718","LARGE":"/responsive/large/content/gallery/product-images/RM/RM3008/P_F_E_W_400_0049_RM3008_01.jpg?v=528557718","ORIGINAL":"/responsive/original/content/gallery/product-images/RM/RM3008/P_F_E_W_400_0049_RM3008_01.jpg?v=528557718","THUMBNAIL":"/responsive/thumbnail/content/gallery/product-images/RM/RM3008/P_F_E_W_400_0049_RM3008_01.jpg?v=528557718","XLARGE":"/responsive/xlarge/content/gallery/product-images/RM/RM3008/P_F_E_W_400_0049_RM3008_01.jpg?v=528557718"},"_type":"product","docType":null,"bulletPoints":["用于准确的位置、速度、角度和线性测量","通过 PROFIBUS 接口直接输出值","坚固的外壳，适用于严苛的工业环境","较高的抗冲击和振动能力","直接在驱动器轴上轻松安装"],"productHeadline":"带实心轴的绝对式多圈编码器","price":null,"currency":null,"formattedPrice":"CNY.00","deliveryTime":"","discountGroupSAP":"","discountGroupBAAN":"","productType":"RM-0025-E24/E-U","imagePath":null,"productGroupFacet":"[null]","accessoryHeadline":"","archiveProduct":false,"ersatzartikel":"","notApproved":false,"customerSpecific":false,"shortDescription":"多圈空心轴编码器; 轴直径 12 mm; 分辨率 8192 步距; 4096 圈数; 25 Bit; PROFIBUS DP; 接线端的接线条","softwareType":"","form":null,"date":null,"fileVersion":null,"fileSize":null,"producer":null,"secure":false,"compatible":true,"additionalAccessoryViewAttribute":null,"additionalAccessoryViewAttributeValue":null,"downloadPackageVersion":null,"viewAttributes":[{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":null,"label":"功能原理","uom":"","listAttribute":false,"valueWithUom":"绝对式 "},{"id":"at_dimensions","value":"Ø 58.5 / L = 99","listValue":null,"label":"尺寸","uom":"mm","listAttribute":false,"valueWithUom":"Ø 58.5 / L = 99 mm"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":null,"label":"轴监控器","uom":"","listAttribute":false,"valueWithUom":"单面开通的空心轴 "},{"id":"at_welle-durchmesser","value":"12","listValue":null,"label":"轴直径","uom":"mm","listAttribute":false,"valueWithUom":"12 mm"},{"id":"at_aufloesung","value":"8192 步距; 4096 圈数; 25 Bit","listValue":null,"label":"分辨率","uom":"","listAttribute":false,"valueWithUom":"8192 步距; 4096 圈数; 25 Bit "},{"id":"at_befestigungsflansch","value":"定子偶合器","listValue":null,"label":"固定法兰","uom":"","listAttribute":false,"valueWithUom":"定子偶合器 "},{"id":"at_anschlussart-mit-details","value":"接线端的接线条","listValue":null,"label":"接口","uom":"","listAttribute":false,"valueWithUom":"接线端的接线条 "},{"id":"at_betriebsspannung-dc-bereich","value":"10...30","listValue":null,"label":"工作电压DC","uom":"V","listAttribute":false,"valueWithUom":"10...30 V"},{"id":"at_schutzart-wert","value":"[IP 67]","listValue":["IP 67"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 67"},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":null,"label":"环境温度","uom":"°C","listAttribute":false,"valueWithUom":"-40...85 °C"},{"id":"at_pruefzeichen-suchfacette","value":"[CE, PI certified]","listValue":["CE","PI certified"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE, PI certified"}],"viewAttributesGrouped":[{"id":"at_aufloesung","value":"8192 步距; 4096 圈数; 25 Bit","listValue":["8192 步距; 4096 圈数; 25 Bit "],"label":"分辨率","uom":"","listAttribute":true,"valueWithUom":"8192 步距; 4096 圈数; 25 Bit "},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":["-40...85 °C"],"label":"环境温度","uom":"°C","listAttribute":true,"valueWithUom":"-40...85 °C"},{"id":"at_anschlussart-mit-details","value":"接线端的接线条","listValue":["接线端的接线条 "],"label":"接口","uom":"","listAttribute":true,"valueWithUom":"接线端的接线条 "},{"id":"at_dimensions","value":"Ø 58.5 / L = 99","listValue":["Ø 58.5 / L = 99 mm"],"label":"尺寸","uom":"mm","listAttribute":true,"valueWithUom":"Ø 58.5 / L = 99 mm"},{"id":"at_befestigungsflansch","value":"定子偶合器","listValue":["定子偶合器 "],"label":"固定法兰","uom":"","listAttribute":true,"valueWithUom":"定子偶合器 "},{"id":"at_betriebsspannung-dc-bereich","value":"10...30","listValue":["10...30 V"],"label":"工作电压DC","uom":"V","listAttribute":true,"valueWithUom":"10...30 V"},{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":["绝对式 "],"label":"功能原理","uom":"","listAttribute":true,"valueWithUom":"绝对式 "},{"id":"at_schutzart-wert","value":"[IP 67]","listValue":["IP 67"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 67"},{"id":"at_welle-durchmesser","value":"12","listValue":["12 mm"],"label":"轴直径","uom":"mm","listAttribute":true,"valueWithUom":"12 mm"},{"id":"at_pruefzeichen-suchfacette","value":"[CE, PI certified]","listValue":["CE, PI certified"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE, PI certified"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":["单面开通的空心轴 "],"label":"轴监控器","uom":"","listAttribute":true,"valueWithUom":"单面开通的空心轴 "}],"processAttributes":[],"evaluationAttributes":[],"variantIds":[],"validImageNames":["P_F_E_W_400_0049_RM3008_01.JPG"],"variants":[],"softwareProduct":false,"productResult":true,"productCategoryDocumentResult":false,"productCategoryResult":false,"hippoDocumentResult":false}
RM3010绝对式Ø 58.5 / L = 98 mm单面开通的空心轴12 mm8192 步距; 4096 圈数; 25 Bit
{"id":"RM3010","revisionId":["00"],"pimId":"RM3010-00","site":null,"title":"RM3010","industryName":null,"summary":"","body":null,"category":null,"url":"/cn/zh/product/RM3010","imageUrl":"/responsive/original/content/gallery/product-images/RM/RM3010/P_F_E_W_400_0068_RM3010_01.jpg?v=530830884","imageThumbnailUrl":"/responsive/thumbnail/content/gallery/product-images/RM/RM3010/P_F_E_W_400_0068_RM3010_01.jpg?v=530830884","responsiveImageUrls":{"SMALL":"/responsive/small/content/gallery/product-images/RM/RM3010/P_F_E_W_400_0068_RM3010_01.jpg?v=530830884","MEDIUM":"/responsive/medium/content/gallery/product-images/RM/RM3010/P_F_E_W_400_0068_RM3010_01.jpg?v=530830884","LARGE":"/responsive/large/content/gallery/product-images/RM/RM3010/P_F_E_W_400_0068_RM3010_01.jpg?v=530830884","ORIGINAL":"/responsive/original/content/gallery/product-images/RM/RM3010/P_F_E_W_400_0068_RM3010_01.jpg?v=530830884","THUMBNAIL":"/responsive/thumbnail/content/gallery/product-images/RM/RM3010/P_F_E_W_400_0068_RM3010_01.jpg?v=530830884","XLARGE":"/responsive/xlarge/content/gallery/product-images/RM/RM3010/P_F_E_W_400_0068_RM3010_01.jpg?v=530830884"},"_type":"product","docType":null,"bulletPoints":["用于准确的位置、速度、角度和线性测量","通过 PROFINET 接口直接输出值","坚固的外壳，适用于严苛的工业环境","较高的抗冲击和振动能力","简单的布线和编程"],"productHeadline":"带实心轴的绝对式多圈编码器","price":null,"currency":null,"formattedPrice":"CNY.00","deliveryTime":"","discountGroupSAP":"","discountGroupBAAN":"","productType":"RM-0025-D24/E-U","imagePath":null,"productGroupFacet":"[null]","accessoryHeadline":"","archiveProduct":false,"ersatzartikel":"","notApproved":false,"customerSpecific":false,"shortDescription":"多圈空心轴编码器; 轴直径 12 mm; 分辨率 8192 步距; 4096 圈数; 25 Bit; ProfiNet-IO; M12 接插件","softwareType":"","form":null,"date":null,"fileVersion":null,"fileSize":null,"producer":null,"secure":false,"compatible":true,"additionalAccessoryViewAttribute":null,"additionalAccessoryViewAttributeValue":null,"downloadPackageVersion":null,"viewAttributes":[{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":null,"label":"功能原理","uom":"","listAttribute":false,"valueWithUom":"绝对式 "},{"id":"at_dimensions","value":"Ø 58.5 / L = 98","listValue":null,"label":"尺寸","uom":"mm","listAttribute":false,"valueWithUom":"Ø 58.5 / L = 98 mm"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":null,"label":"轴监控器","uom":"","listAttribute":false,"valueWithUom":"单面开通的空心轴 "},{"id":"at_welle-durchmesser","value":"12","listValue":null,"label":"轴直径","uom":"mm","listAttribute":false,"valueWithUom":"12 mm"},{"id":"at_aufloesung","value":"8192 步距; 4096 圈数; 25 Bit","listValue":null,"label":"分辨率","uom":"","listAttribute":false,"valueWithUom":"8192 步距; 4096 圈数; 25 Bit "},{"id":"at_befestigungsflansch","value":"定子偶合器","listValue":null,"label":"固定法兰","uom":"","listAttribute":false,"valueWithUom":"定子偶合器 "},{"id":"at_anschlussart-mit-details","value":"M12 接插件","listValue":null,"label":"接口","uom":"","listAttribute":false,"valueWithUom":"M12 接插件 "},{"id":"at_betriebsspannung-dc-bereich","value":"10...30","listValue":null,"label":"工作电压DC","uom":"V","listAttribute":false,"valueWithUom":"10...30 V"},{"id":"at_schutzart-wert","value":"[IP 67]","listValue":["IP 67"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 67"},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":null,"label":"环境温度","uom":"°C","listAttribute":false,"valueWithUom":"-40...85 °C"},{"id":"at_pruefzeichen-suchfacette","value":"[CE]","listValue":["CE"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE"}],"viewAttributesGrouped":[{"id":"at_aufloesung","value":"8192 步距; 4096 圈数; 25 Bit","listValue":["8192 步距; 4096 圈数; 25 Bit "],"label":"分辨率","uom":"","listAttribute":true,"valueWithUom":"8192 步距; 4096 圈数; 25 Bit "},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":["-40...85 °C"],"label":"环境温度","uom":"°C","listAttribute":true,"valueWithUom":"-40...85 °C"},{"id":"at_anschlussart-mit-details","value":"M12 接插件","listValue":["M12 接插件 "],"label":"接口","uom":"","listAttribute":true,"valueWithUom":"M12 接插件 "},{"id":"at_dimensions","value":"Ø 58.5 / L = 98","listValue":["Ø 58.5 / L = 98 mm"],"label":"尺寸","uom":"mm","listAttribute":true,"valueWithUom":"Ø 58.5 / L = 98 mm"},{"id":"at_befestigungsflansch","value":"定子偶合器","listValue":["定子偶合器 "],"label":"固定法兰","uom":"","listAttribute":true,"valueWithUom":"定子偶合器 "},{"id":"at_betriebsspannung-dc-bereich","value":"10...30","listValue":["10...30 V"],"label":"工作电压DC","uom":"V","listAttribute":true,"valueWithUom":"10...30 V"},{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":["绝对式 "],"label":"功能原理","uom":"","listAttribute":true,"valueWithUom":"绝对式 "},{"id":"at_schutzart-wert","value":"[IP 67]","listValue":["IP 67"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 67"},{"id":"at_welle-durchmesser","value":"12","listValue":["12 mm"],"label":"轴直径","uom":"mm","listAttribute":true,"valueWithUom":"12 mm"},{"id":"at_pruefzeichen-suchfacette","value":"[CE]","listValue":["CE"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":["单面开通的空心轴 "],"label":"轴监控器","uom":"","listAttribute":true,"valueWithUom":"单面开通的空心轴 "}],"processAttributes":[],"evaluationAttributes":[],"variantIds":[],"validImageNames":["P_F_E_W_400_0068_RM3010_01.JPG","P_F_E_W_400_0068_RM3010_02.JPG","P_F_E_W_400_0068_RM3010_03.JPG","P_F_E_W_400_0068_RM3010_04.JPG"],"variants":[],"softwareProduct":false,"productResult":true,"productCategoryDocumentResult":false,"productCategoryResult":false,"hippoDocumentResult":false}
RM8003绝对式Ø 36.5 / L = 67 mm单面开通的空心轴12 mm4096 分辨率; 4096 圈数; 24 Bit
{"id":"RM8003","revisionId":["00"],"pimId":"RM8003-00","site":null,"title":"RM8003","industryName":null,"summary":"","body":null,"category":null,"url":"/cn/zh/product/RM8003","imageUrl":"/responsive/original/content/gallery/product-images/RM/RM8003/P_F_E_W_400_0044_RM8003_01.jpg?v=-447839977","imageThumbnailUrl":"/responsive/thumbnail/content/gallery/product-images/RM/RM8003/P_F_E_W_400_0044_RM8003_01.jpg?v=-447839977","responsiveImageUrls":{"SMALL":"/responsive/small/content/gallery/product-images/RM/RM8003/P_F_E_W_400_0044_RM8003_01.jpg?v=-447839977","MEDIUM":"/responsive/medium/content/gallery/product-images/RM/RM8003/P_F_E_W_400_0044_RM8003_01.jpg?v=-447839977","LARGE":"/responsive/large/content/gallery/product-images/RM/RM8003/P_F_E_W_400_0044_RM8003_01.jpg?v=-447839977","ORIGINAL":"/responsive/original/content/gallery/product-images/RM/RM8003/P_F_E_W_400_0044_RM8003_01.jpg?v=-447839977","THUMBNAIL":"/responsive/thumbnail/content/gallery/product-images/RM/RM8003/P_F_E_W_400_0044_RM8003_01.jpg?v=-447839977","XLARGE":"/responsive/xlarge/content/gallery/product-images/RM/RM8003/P_F_E_W_400_0044_RM8003_01.jpg?v=-447839977"},"_type":"product","docType":null,"bulletPoints":["用于准确的位置、速度、角度和线性测量","通过 SSI 接口直接输出值","坚固的外壳，适用于严苛的工业环境","较高的抗冲击和振动能力","简单的布线和编程"],"productHeadline":"带实心轴的绝对式多圈编码器","price":null,"currency":null,"formattedPrice":"CNY.00","deliveryTime":"","discountGroupSAP":"","discountGroupBAAN":"","productType":"RMS4096-S24/L2U","imagePath":null,"productGroupFacet":"[null]","accessoryHeadline":"","archiveProduct":false,"ersatzartikel":"","notApproved":false,"customerSpecific":false,"shortDescription":"多圈空心轴编码器; 轴直径 12 mm; 分辨率 4096 分辨率; 4096 圈数; 24 Bit; SSI数据接口; 2 m PUR-电缆","softwareType":"","form":null,"date":null,"fileVersion":null,"fileSize":null,"producer":null,"secure":false,"compatible":true,"additionalAccessoryViewAttribute":null,"additionalAccessoryViewAttributeValue":null,"downloadPackageVersion":null,"viewAttributes":[{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":null,"label":"功能原理","uom":"","listAttribute":false,"valueWithUom":"绝对式 "},{"id":"at_dimensions","value":"Ø 36.5 / L = 67","listValue":null,"label":"尺寸","uom":"mm","listAttribute":false,"valueWithUom":"Ø 36.5 / L = 67 mm"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":null,"label":"轴监控器","uom":"","listAttribute":false,"valueWithUom":"单面开通的空心轴 "},{"id":"at_welle-durchmesser","value":"12","listValue":null,"label":"轴直径","uom":"mm","listAttribute":false,"valueWithUom":"12 mm"},{"id":"at_aufloesung","value":"4096 分辨率; 4096 圈数; 24 Bit","listValue":null,"label":"分辨率","uom":"","listAttribute":false,"valueWithUom":"4096 分辨率; 4096 圈数; 24 Bit "},{"id":"at_anschlussart-mit-details","value":"2 m PUR-电缆","listValue":null,"label":"接口","uom":"","listAttribute":false,"valueWithUom":"2 m PUR-电缆 "},{"id":"at_kabellaenge","value":"[2]","listValue":["2"],"label":"电缆长度","uom":"m","listAttribute":true,"valueWithUom":"2"},{"id":"at_betriebsspannung-dc-bereich","value":"4.5...30","listValue":null,"label":"工作电压DC","uom":"V","listAttribute":false,"valueWithUom":"4.5...30 V"},{"id":"at_schutzart-wert","value":"[IP 65]","listValue":["IP 65"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 65"},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":null,"label":"环境温度","uom":"°C","listAttribute":false,"valueWithUom":"-40...85 °C"},{"id":"at_pruefzeichen-suchfacette","value":"[CE]","listValue":["CE"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE"}],"viewAttributesGrouped":[{"id":"at_aufloesung","value":"4096 分辨率; 4096 圈数; 24 Bit","listValue":["4096 分辨率; 4096 圈数; 24 Bit "],"label":"分辨率","uom":"","listAttribute":true,"valueWithUom":"4096 分辨率; 4096 圈数; 24 Bit "},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":["-40...85 °C"],"label":"环境温度","uom":"°C","listAttribute":true,"valueWithUom":"-40...85 °C"},{"id":"at_anschlussart-mit-details","value":"2 m PUR-电缆","listValue":["2 m PUR-电缆 "],"label":"接口","uom":"","listAttribute":true,"valueWithUom":"2 m PUR-电缆 "},{"id":"at_dimensions","value":"Ø 36.5 / L = 67","listValue":["Ø 36.5 / L = 67 mm"],"label":"尺寸","uom":"mm","listAttribute":true,"valueWithUom":"Ø 36.5 / L = 67 mm"},{"id":"at_betriebsspannung-dc-bereich","value":"4.5...30","listValue":["4.5...30 V"],"label":"工作电压DC","uom":"V","listAttribute":true,"valueWithUom":"4.5...30 V"},{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":["绝对式 "],"label":"功能原理","uom":"","listAttribute":true,"valueWithUom":"绝对式 "},{"id":"at_schutzart-wert","value":"[IP 65]","listValue":["IP 65"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 65"},{"id":"at_welle-durchmesser","value":"12","listValue":["12 mm"],"label":"轴直径","uom":"mm","listAttribute":true,"valueWithUom":"12 mm"},{"id":"at_pruefzeichen-suchfacette","value":"[CE]","listValue":["CE"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":["单面开通的空心轴 "],"label":"轴监控器","uom":"","listAttribute":true,"valueWithUom":"单面开通的空心轴 "},{"id":"at_kabellaenge","value":"[2]","listValue":["2"],"label":"电缆长度","uom":"m","listAttribute":true,"valueWithUom":"2"}],"processAttributes":[],"evaluationAttributes":[],"variantIds":[],"validImageNames":["P_F_E_W_400_0044_RM8003_01.JPG"],"variants":[],"softwareProduct":false,"productResult":true,"productCategoryDocumentResult":false,"productCategoryResult":false,"hippoDocumentResult":false}
RM8004绝对式Ø 36.5 / L = 74 mm单面开通的空心轴12 mm4096 步距; 4096 圈数; 24 Bit
{"id":"RM8004","revisionId":["00"],"pimId":"RM8004-00","site":null,"title":"RM8004","industryName":null,"summary":"","body":null,"category":null,"url":"/cn/zh/product/RM8004","imageUrl":"/responsive/original/content/gallery/product-images/RM/RM8004/P_F_E_W_400_0087_RM8004_01.jpg?v=-447826488","imageThumbnailUrl":"/responsive/thumbnail/content/gallery/product-images/RM/RM8004/P_F_E_W_400_0087_RM8004_01.jpg?v=-447826488","responsiveImageUrls":{"SMALL":"/responsive/small/content/gallery/product-images/RM/RM8004/P_F_E_W_400_0087_RM8004_01.jpg?v=-447826488","MEDIUM":"/responsive/medium/content/gallery/product-images/RM/RM8004/P_F_E_W_400_0087_RM8004_01.jpg?v=-447826488","LARGE":"/responsive/large/content/gallery/product-images/RM/RM8004/P_F_E_W_400_0087_RM8004_01.jpg?v=-447826488","ORIGINAL":"/responsive/original/content/gallery/product-images/RM/RM8004/P_F_E_W_400_0087_RM8004_01.jpg?v=-447826488","THUMBNAIL":"/responsive/thumbnail/content/gallery/product-images/RM/RM8004/P_F_E_W_400_0087_RM8004_01.jpg?v=-447826488","XLARGE":"/responsive/xlarge/content/gallery/product-images/RM/RM8004/P_F_E_W_400_0087_RM8004_01.jpg?v=-447826488"},"_type":"product","docType":null,"bulletPoints":["用于准确的位置、速度、角度和线性测量","通过 CANopen 接口直接输出值","坚固的外壳，适用于严苛的工业环境","较高的抗冲击和振动能力","简单的布线和编程"],"productHeadline":"带空心轴的绝对式多圈编码器","price":null,"currency":null,"formattedPrice":"CNY.00","deliveryTime":"","discountGroupSAP":"","discountGroupBAAN":"","productType":"RMS0024-C24/USU","imagePath":null,"productGroupFacet":"[null]","accessoryHeadline":"","archiveProduct":false,"ersatzartikel":"","notApproved":false,"customerSpecific":false,"shortDescription":"多圈空心轴编码器; 轴直径 12 mm; 分辨率 4096 步距; 4096 圈数; 24 Bit; CAN; M12 接插件","softwareType":"","form":null,"date":null,"fileVersion":null,"fileSize":null,"producer":null,"secure":false,"compatible":true,"additionalAccessoryViewAttribute":null,"additionalAccessoryViewAttributeValue":null,"downloadPackageVersion":null,"viewAttributes":[{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":null,"label":"功能原理","uom":"","listAttribute":false,"valueWithUom":"绝对式 "},{"id":"at_dimensions","value":"Ø 36.5 / L = 74","listValue":null,"label":"尺寸","uom":"mm","listAttribute":false,"valueWithUom":"Ø 36.5 / L = 74 mm"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":null,"label":"轴监控器","uom":"","listAttribute":false,"valueWithUom":"单面开通的空心轴 "},{"id":"at_welle-durchmesser","value":"12","listValue":null,"label":"轴直径","uom":"mm","listAttribute":false,"valueWithUom":"12 mm"},{"id":"at_aufloesung","value":"4096 步距; 4096 圈数; 24 Bit","listValue":null,"label":"分辨率","uom":"","listAttribute":false,"valueWithUom":"4096 步距; 4096 圈数; 24 Bit "},{"id":"at_anschlussart-mit-details","value":"M12 接插件","listValue":null,"label":"接口","uom":"","listAttribute":false,"valueWithUom":"M12 接插件 "},{"id":"at_betriebsspannung-dc-bereich","value":"9...30","listValue":null,"label":"工作电压DC","uom":"V","listAttribute":false,"valueWithUom":"9...30 V"},{"id":"at_schutzart-wert","value":"[IP 65]","listValue":["IP 65"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 65"},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":null,"label":"环境温度","uom":"°C","listAttribute":false,"valueWithUom":"-40...85 °C"},{"id":"at_pruefzeichen-suchfacette","value":"[CE, cULus]","listValue":["CE","cULus"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE, cULus"}],"viewAttributesGrouped":[{"id":"at_aufloesung","value":"4096 步距; 4096 圈数; 24 Bit","listValue":["4096 步距; 4096 圈数; 24 Bit "],"label":"分辨率","uom":"","listAttribute":true,"valueWithUom":"4096 步距; 4096 圈数; 24 Bit "},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":["-40...85 °C"],"label":"环境温度","uom":"°C","listAttribute":true,"valueWithUom":"-40...85 °C"},{"id":"at_anschlussart-mit-details","value":"M12 接插件","listValue":["M12 接插件 "],"label":"接口","uom":"","listAttribute":true,"valueWithUom":"M12 接插件 "},{"id":"at_dimensions","value":"Ø 36.5 / L = 74","listValue":["Ø 36.5 / L = 74 mm"],"label":"尺寸","uom":"mm","listAttribute":true,"valueWithUom":"Ø 36.5 / L = 74 mm"},{"id":"at_betriebsspannung-dc-bereich","value":"9...30","listValue":["9...30 V"],"label":"工作电压DC","uom":"V","listAttribute":true,"valueWithUom":"9...30 V"},{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":["绝对式 "],"label":"功能原理","uom":"","listAttribute":true,"valueWithUom":"绝对式 "},{"id":"at_schutzart-wert","value":"[IP 65]","listValue":["IP 65"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 65"},{"id":"at_welle-durchmesser","value":"12","listValue":["12 mm"],"label":"轴直径","uom":"mm","listAttribute":true,"valueWithUom":"12 mm"},{"id":"at_pruefzeichen-suchfacette","value":"[CE, cULus]","listValue":["CE, cULus"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE, cULus"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":["单面开通的空心轴 "],"label":"轴监控器","uom":"","listAttribute":true,"valueWithUom":"单面开通的空心轴 "}],"processAttributes":[],"evaluationAttributes":[],"variantIds":[],"validImageNames":["P_F_E_W_400_0087_RM8004_01.JPG","P_F_E_W_400_0087_RM8004_02.JPG","P_F_E_W_400_0087_RM8004_03.JPG"],"variants":[],"softwareProduct":false,"productResult":true,"productCategoryDocumentResult":false,"productCategoryResult":false,"hippoDocumentResult":false}
RM8007绝对式Ø 36.5 / L = 74 mm单面开通的空心轴12 mm4096 步距; 4096 圈数; 24 Bit
{"id":"RM8007","revisionId":["00"],"pimId":"RM8007-00","site":null,"title":"RM8007","industryName":null,"summary":"","body":null,"category":null,"url":"/cn/zh/product/RM8007","imageUrl":"/responsive/original/content/gallery/product-images/RM/RM8007/P_F_E_W_400_0109_RM8007_01.jpg?v=-447842617","imageThumbnailUrl":"/responsive/thumbnail/content/gallery/product-images/RM/RM8007/P_F_E_W_400_0109_RM8007_01.jpg?v=-447842617","responsiveImageUrls":{"SMALL":"/responsive/small/content/gallery/product-images/RM/RM8007/P_F_E_W_400_0109_RM8007_01.jpg?v=-447842617","MEDIUM":"/responsive/medium/content/gallery/product-images/RM/RM8007/P_F_E_W_400_0109_RM8007_01.jpg?v=-447842617","LARGE":"/responsive/large/content/gallery/product-images/RM/RM8007/P_F_E_W_400_0109_RM8007_01.jpg?v=-447842617","ORIGINAL":"/responsive/original/content/gallery/product-images/RM/RM8007/P_F_E_W_400_0109_RM8007_01.jpg?v=-447842617","THUMBNAIL":"/responsive/thumbnail/content/gallery/product-images/RM/RM8007/P_F_E_W_400_0109_RM8007_01.jpg?v=-447842617","XLARGE":"/responsive/xlarge/content/gallery/product-images/RM/RM8007/P_F_E_W_400_0109_RM8007_01.jpg?v=-447842617"},"_type":"product","docType":null,"bulletPoints":[null],"productHeadline":"带空心轴的绝对式多圈编码器","price":null,"currency":null,"formattedPrice":"CNY.00","deliveryTime":"","discountGroupSAP":"","discountGroupBAAN":"","productType":"RMS0024-C24/UST","imagePath":null,"productGroupFacet":"[null]","accessoryHeadline":"","archiveProduct":false,"ersatzartikel":"","notApproved":false,"customerSpecific":false,"shortDescription":"多圈空心轴编码器; 轴直径 12 mm; 分辨率 4096 步距; 4096 圈数; 24 Bit; CAN; M12 接插件","softwareType":"","form":null,"date":null,"fileVersion":null,"fileSize":null,"producer":null,"secure":false,"compatible":true,"additionalAccessoryViewAttribute":null,"additionalAccessoryViewAttributeValue":null,"downloadPackageVersion":null,"viewAttributes":[{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":null,"label":"功能原理","uom":"","listAttribute":false,"valueWithUom":"绝对式 "},{"id":"at_dimensions","value":"Ø 36.5 / L = 74","listValue":null,"label":"尺寸","uom":"mm","listAttribute":false,"valueWithUom":"Ø 36.5 / L = 74 mm"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":null,"label":"轴监控器","uom":"","listAttribute":false,"valueWithUom":"单面开通的空心轴 "},{"id":"at_welle-durchmesser","value":"12","listValue":null,"label":"轴直径","uom":"mm","listAttribute":false,"valueWithUom":"12 mm"},{"id":"at_aufloesung","value":"4096 步距; 4096 圈数; 24 Bit","listValue":null,"label":"分辨率","uom":"","listAttribute":false,"valueWithUom":"4096 步距; 4096 圈数; 24 Bit "},{"id":"at_anschlussart-mit-details","value":"M12 接插件","listValue":null,"label":"接口","uom":"","listAttribute":false,"valueWithUom":"M12 接插件 "},{"id":"at_betriebsspannung-dc-bereich","value":"9...30","listValue":null,"label":"工作电压DC","uom":"V","listAttribute":false,"valueWithUom":"9...30 V"},{"id":"at_schutzart-wert","value":"[IP 65]","listValue":["IP 65"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 65"},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":null,"label":"环境温度","uom":"°C","listAttribute":false,"valueWithUom":"-40...85 °C"},{"id":"at_pruefzeichen-suchfacette","value":"[CE, cULus]","listValue":["CE","cULus"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE, cULus"}],"viewAttributesGrouped":[{"id":"at_aufloesung","value":"4096 步距; 4096 圈数; 24 Bit","listValue":["4096 步距; 4096 圈数; 24 Bit "],"label":"分辨率","uom":"","listAttribute":true,"valueWithUom":"4096 步距; 4096 圈数; 24 Bit "},{"id":"at_umgebungstemperatur-cel-bereich","value":"-40...85","listValue":["-40...85 °C"],"label":"环境温度","uom":"°C","listAttribute":true,"valueWithUom":"-40...85 °C"},{"id":"at_anschlussart-mit-details","value":"M12 接插件","listValue":["M12 接插件 "],"label":"接口","uom":"","listAttribute":true,"valueWithUom":"M12 接插件 "},{"id":"at_dimensions","value":"Ø 36.5 / L = 74","listValue":["Ø 36.5 / L = 74 mm"],"label":"尺寸","uom":"mm","listAttribute":true,"valueWithUom":"Ø 36.5 / L = 74 mm"},{"id":"at_betriebsspannung-dc-bereich","value":"9...30","listValue":["9...30 V"],"label":"工作电压DC","uom":"V","listAttribute":true,"valueWithUom":"9...30 V"},{"id":"at_drehgeber-funktionsprinzip","value":"绝对式","listValue":["绝对式 "],"label":"功能原理","uom":"","listAttribute":true,"valueWithUom":"绝对式 "},{"id":"at_schutzart-wert","value":"[IP 65]","listValue":["IP 65"],"label":"外壳防护等级","uom":"","listAttribute":true,"valueWithUom":"IP 65"},{"id":"at_welle-durchmesser","value":"12","listValue":["12 mm"],"label":"轴直径","uom":"mm","listAttribute":true,"valueWithUom":"12 mm"},{"id":"at_pruefzeichen-suchfacette","value":"[CE, cULus]","listValue":["CE, cULus"],"label":"许可证","uom":"","listAttribute":true,"valueWithUom":"CE, cULus"},{"id":"at_welle-ausfuehrung","value":"单面开通的空心轴","listValue":["单面开通的空心轴 "],"label":"轴监控器","uom":"","listAttribute":true,"valueWithUom":"单面开通的空心轴 "}],"processAttributes":[],"evaluationAttributes":[],"variantIds":[],"validImageNames":["P_F_E_W_400_0109_RM8007_01.JPG","P_F_E_W_400_0109_RM8007_02.JPG","P_F_E_W_400_0109_RM8007_03.JPG"],"variants":[],"softwareProduct":false,"productResult":true,"productCategoryDocumentResult":false,"productCategoryResult":false,"hippoDocumentResult":false}

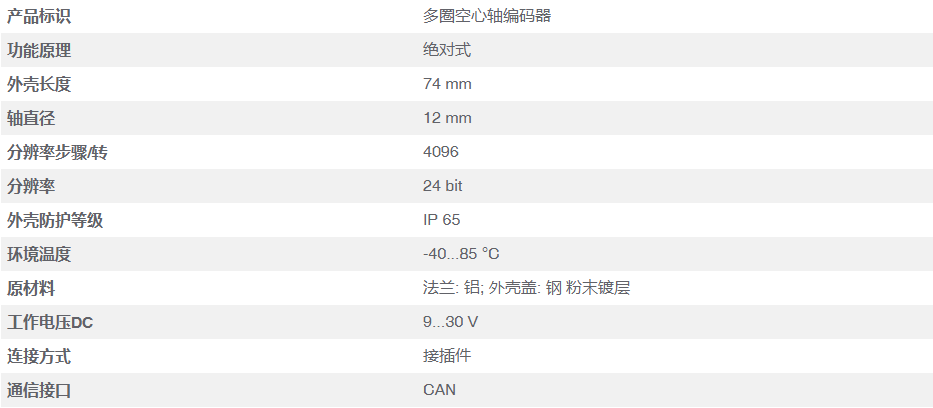

产品特征
分辨率4096 步距; 4096 圈数; 24 Bit
通信接口CAN
轴监控器单面开通的空心轴
轴直径 [mm]12
应用
功能原理绝对式
旋转类型多圈
电气数据
工作电压 [V]9...30 DC; (符合cULus - Class 2标准)
电流损耗 [mA]< 100; ((10 V DC) ; ≤ 50 (24 V DC))
防护等级III
反相保护有
输出
短路保护有
代码二位输出
测量/设定范围
分辨率4096 步距; 4096 圈数; 24 Bit
精度/偏差
精确度 [°]0.25
软件/编程
参数设定CAN参数; 标度; 预设; 波特率; 转向; Node ID
接口
通信接口CAN
CAN
协议CANopen
出厂设置波特率: 250 kBit/s节点ID: 5
版本DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0
工作条件
环境温度 [°C]-40...85
允许最大的相对空气湿度 [%]98
外壳防护等级IP 65; (在外壳: IP 65; 在轴: IP 64)
认证/测试
抗冲击< 300 g (6 ms)
抗震30 g (10...1000 Hz)
机械技术数据
重量 [g]228
尺寸 [mm]Ø 36.5 / L = 74
原材料法兰: 铝; 外壳盖: 钢 粉末镀层
机械最大值 [U/min]6000
启动扭矩最大值 [Nm]3
温度扭矩参考 [°C]25
轴监控器单面开通的空心轴
轴直径 [mm]12
轴材料钢
轴向轴负载最大值 (轴末端) [N]40
径向轴负载最大值 (轴末端) [N]110
显示器/操作件
显示Preoperational ModeLED, 绿色Operational ModeLED, 绿色 闪烁故障报警LED, 红色 闪烁
电气连接

接插件: 1 x M12, 轴向的


-
-
