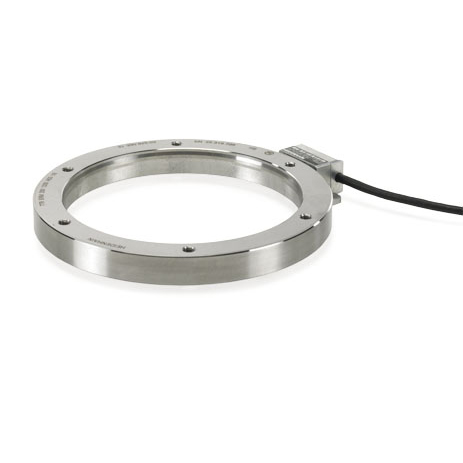

海德汉模块式磁栅编码器ERM2200系列
Scanning head：AK ERM 2280
Interface：1 VPP
Cutoff frequency –3 dB≥ 300 kHz
Signal period≈ 200 µm
Line count* See ''Scale drum”
Electrical connection* Cable 1 m, with or without coupling
Cable length≤ 150 m (with HEIDENHAIN cable)
Voltage supply：5 V DC ± 0.5 V
Current requirement≤ 150 mA (without load)
Vibration 55 to 2000 Hz≤ 400 m/s2 (EN 60 068-2-6)
Shock 6 ms≤ 1000 m/s2 (EN 60 068-2-27)
Operating temperature：–10 °C to +60 °C
Protection EN 60 529：IP67
Mass≈ 0.15 kg (with cable)
